Water Point Sensor
FG-PROBE
- Fully Stand-Alone System
- Instant Leak Detection Response
- High-Visibility LED Indicator
- Power Supply Included
- Integrated Output Relay (NO or NC)
- Compact, Reliable and Easy to Install
The FG-PROBE is a compact, stand-alone point sensor designed for reliable water leak detection in sensitive or confined areas. It features a high-visibility LED indicator and two stainless steel probes, spaced 0.8 inch (2 cm) apart. The sensor triggers an alarm only when both probes simultaneously detect water, significantly reducing the risk of false alarms.
The FG-PROBE is designed for quick and easy installation, with two possible mounting configurations:

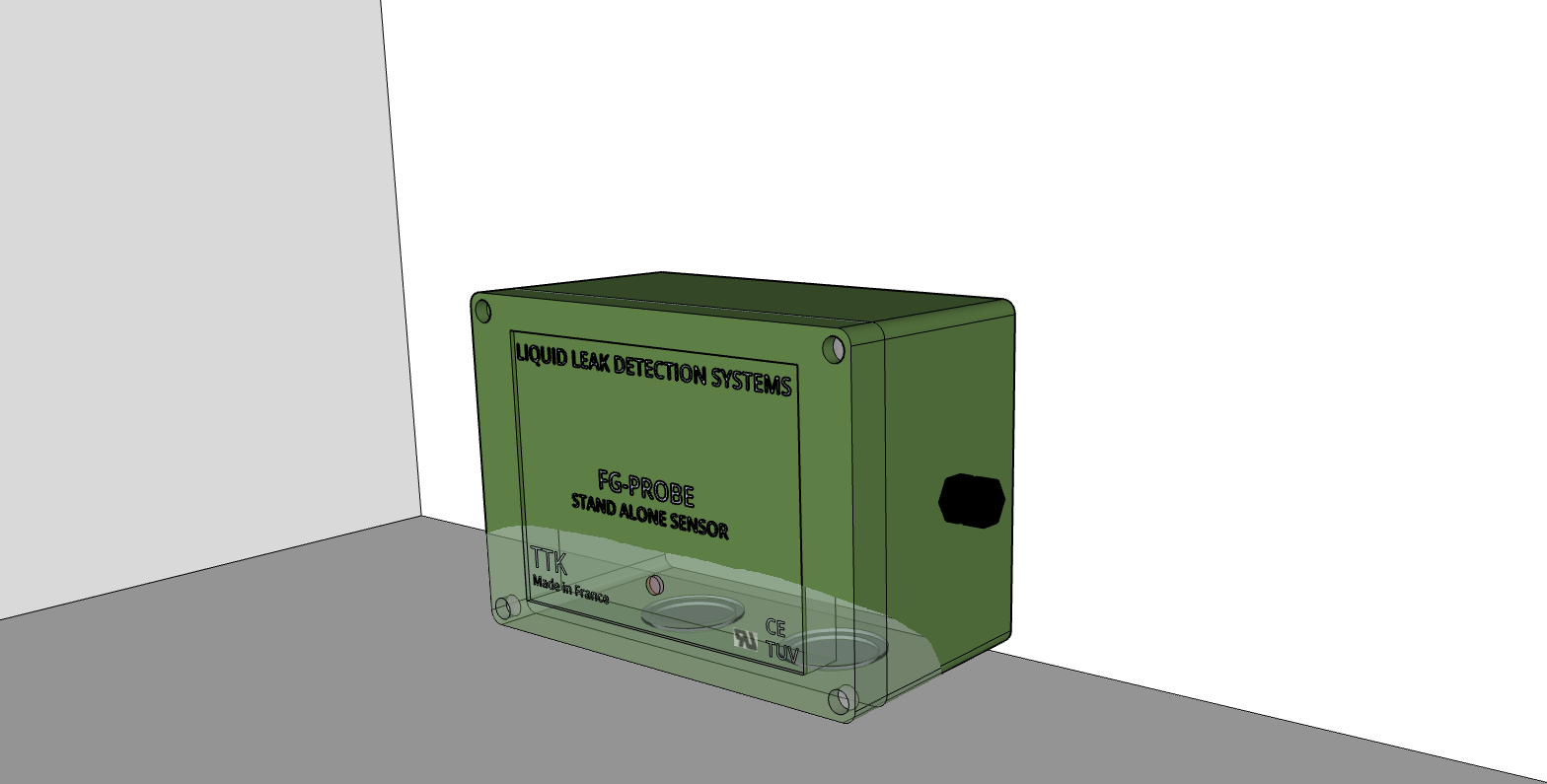

– Vertical: fixed to a wall, with probes facing downward (schematic 1);

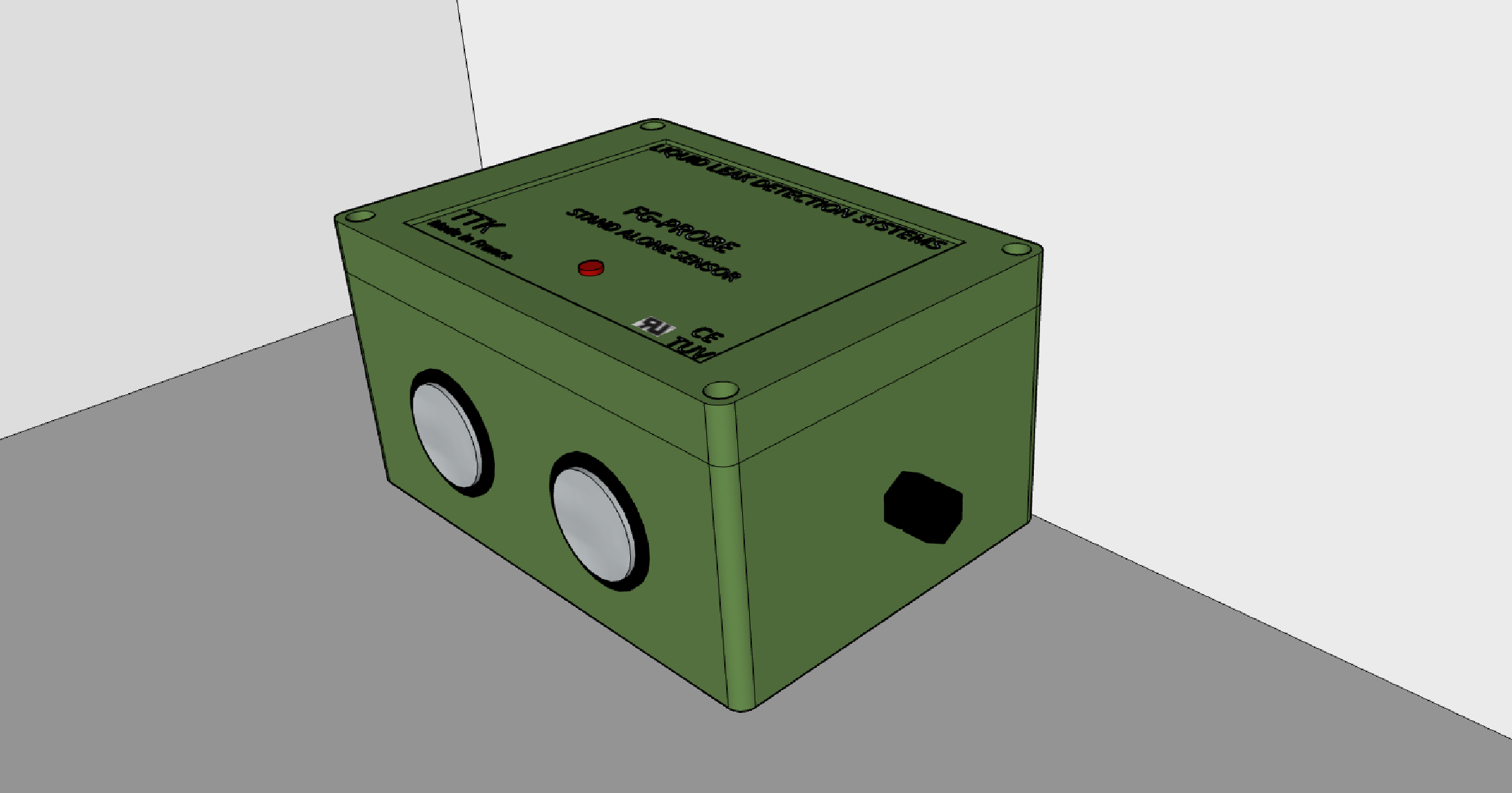

– Horizontal: flat on the floor, with probes on the side (schematic 2).
 |
|
| Vertical Installation (Schematic 1) | Horizontal Installation (Schematic 2) |
